Niewiadów plywood vans are specialized universal trailers made of multilayer wood plywood intended for transporting various types of goods, protecting them against weather conditions. It is an excellent alternative for trailers with a frame and tarpaulin or a delivery truck. The standard vans are made in white with double, bolted and locked doors. Optionally, for an extra charge, they can be converted into trap or combi trap – it gives the possibility of tilting the door both as a door and as a trap. Each van is equipped with floor brackets for securing the load, omega clip of the side wall, 2 fixed supports, 2 wedges and a jockey wheel.

Plywood vans F2030HTD

0.00

Categories: ,

Technical parameters

Trailer model Plywood vans F2030HTD
Box body dimensions (cm) 305x150x180
Overall dimensions (cm) 462x200x234
Gross Vehicle Weight (kg) 2000 – 1100
Permissible load capacity (kg) 1350 – 450
Number of axles 1 braked
Wheels 185/70R13
The structure of the walls Multilayer white plywood
Floor Waterproof plywood
Floor lugs for securing the load 8 pieces
Frame Steel, hot-dip galvanized
Trap The ramp on gas shock absorbers
Wheel chocks 2 pieces
Omegowka sidewall 2 pieces per side
Maneuvering handles 2 pieces
Side vent 1 piece per side
Support wheel Yes

Optional accessories

Spare wheel Available

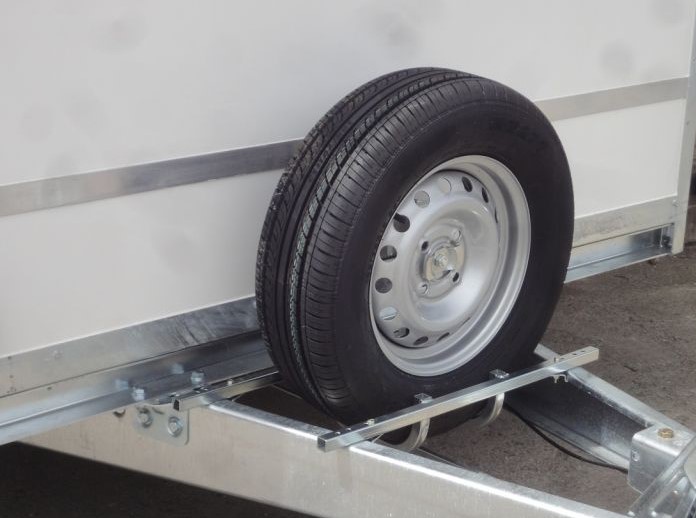

Spare wheel support Available
Side doors Available
Axle shock absorbers set (2 pcs.) Available

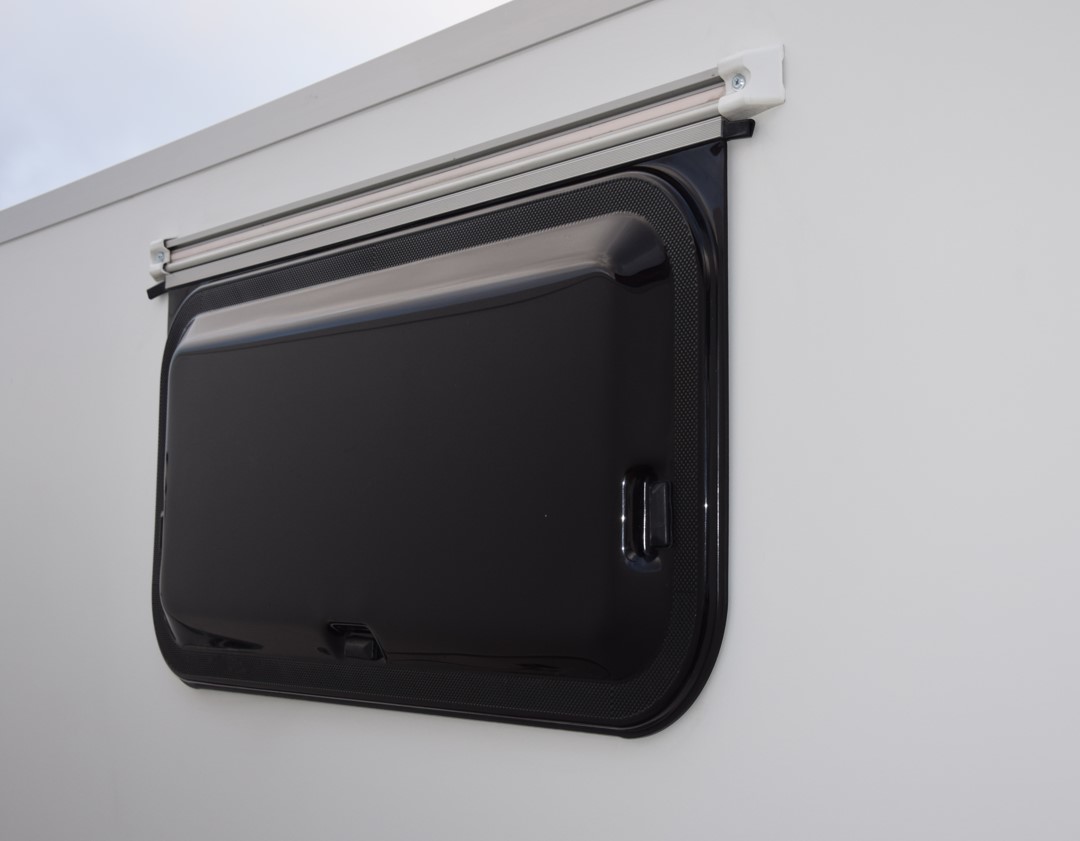

Window 80×50 cm Available
Window 120×54 cm Available
Window 120×60 cm Available

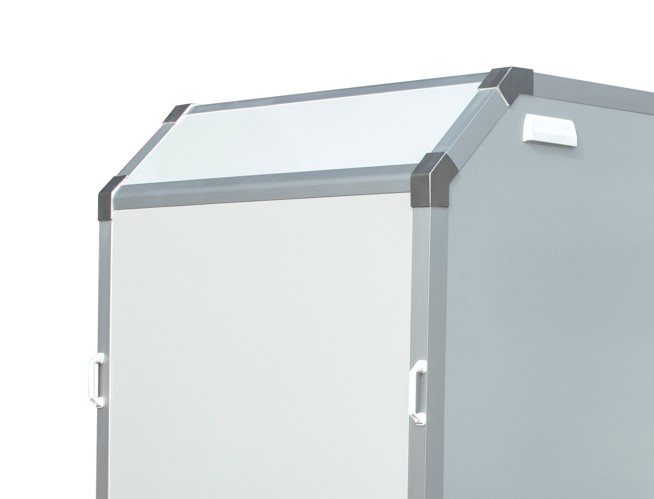

Aerodynamic bevel Available
Roof hatch 40×40 Available
Combi trap Option for model F2030 / F2036 / F2041
Side sales hatch Available
Indoor LED lighting Available
Outdoor LED lighting Available
